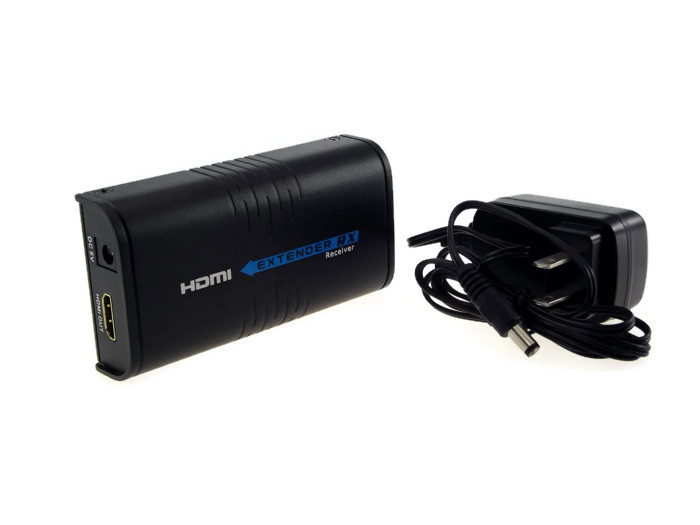

กล่องแปลง HDMI เป็นสายแลน IP HDMI 100M LAN RX TX

Introduction

Model No

LKV373

Item

HDMI  extender over Lan

Dimension

TX：10.6*5.7*2.6

RX：10.6*5.7*2.6

Weight

Material

Selling Points

One twisted pair up to 120 m(cat6), can be extended indefinitely.

HDMI network extender

Netwoek splitter technology

Nerwork extension technology

HDMI function and interface

Support HDCP version

HDCP1.2

Input HDMI  resolution

480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz；

Output HDMI  resolution

480p@60Hz、576p@50Hz、720p@50/60Hz、1080p@50/60Hz

Support video color  format

24bit/Deep  color 30bit/Deep color 36bit

Support audio format

DTS-HD/Dolby-true  HD/LPCM7.1/DTS/Dolby-AC3/DSD

Max transmission  rate

10.2Gbps

Audio signal  transmission format

L/R  stereo audio

TMDS signal

0.5-1.5Vp-p  (TMDS)

DDC signal

5Vp-p(TTL)

Input cable length

≤5m (AWG26 HDMI1.3 standard cable)

Output cable length

≤5m (AWG26 HDMI1.3 standard cable)

Transmission medium

Connector Type

RJ45

Interface

Twisted  Pair  Cat5e/6

Transmission  distance

Cat6  up to 120m(Cat5e up to 100m)

Cabling standards

TIA/EIA568  B

Power supply

Power supply mode

Power  adapter

Voltage range

DC5V

Power comsumption

<3.6W

Operating Environment

Electrostatic  protection for machine

1a  socketed discharge level 3

1b  air discharge   level 3

Standard:  IEC61000-4-2

Working temperature

0～55℃

Storage temperature

-20  - 70 ℃

(non-condensing)

0～95%
