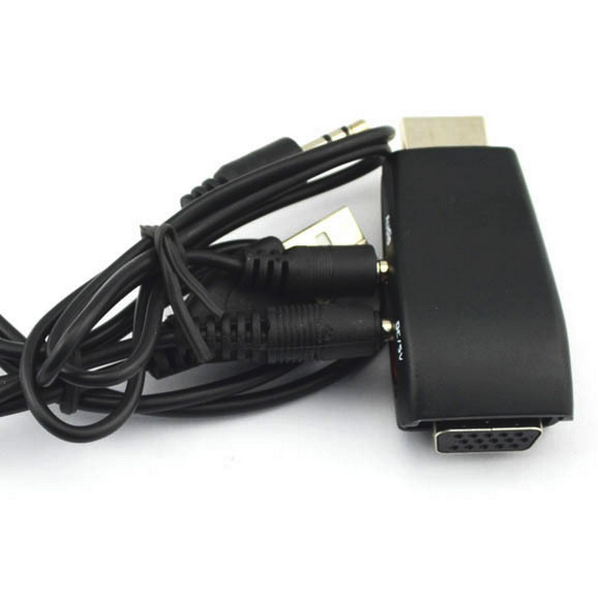

อแดปเตอร์แปลง HDMI เป็น VGA ( HDMI TO VGA ADAPTER )

พร้อมช่องเสียง 3.5 mm และ usb power ( ใช้เสริมเมื่อไฟจาก HDMI ไม่พอ )

Description :

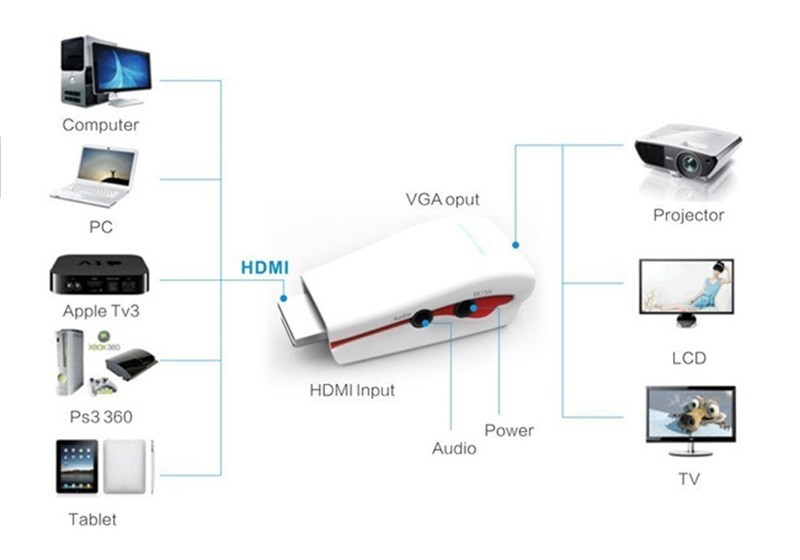

This is a upgraded version HDMI to VGA video & Audio(3.5mm Audio output)adapter with 5V DC Power supply port, desinged  to transfer HDMI signal of those devices with HDMI interface, like computer, laptop,HD-set-top-box, harddisk player, PS3, Xbox360 and tablets,  to VGA signal and display it to large screen devices, such as monitors, LCD TV, Projectors.

Features :

• 100% Brand New And High Quality

• Upgraded Version video & audio function.

• Small in size, low power consumtion,only need 5V less than 140mA.

• Built in Chipset, Plug and Play, no software is needed.

• Convert HDMI Input to VGA Video + 3.5mm Audio Output.

• Support HDCP 1.0 / 1.1 / 1.2 / 1.3, HDMI Input: 480i / 576i / 480p / 576p / 720p / 1080p, VGA Output: 480i / 576i / 480p / 576p / 720p / 1080p

• Powered by HDMI, no external power adapter required (such as PC, Computer). Besides, if the HDMI sources can't supply the power, you can connect your power adapter or computer to the 5V DC female power port for charging and getting power.

• Easy installation and operation.

• Suitable for portable HDMI device (like laptop/mobile phone/DVD/tablet/digital set-top box/player/digital camera/SLR camera etc) and VGA ONLY display device(monitor, projectors, etc). 3.5mm audio output to connect to external audio devices, like external amplifier or speakers.

Specifications:

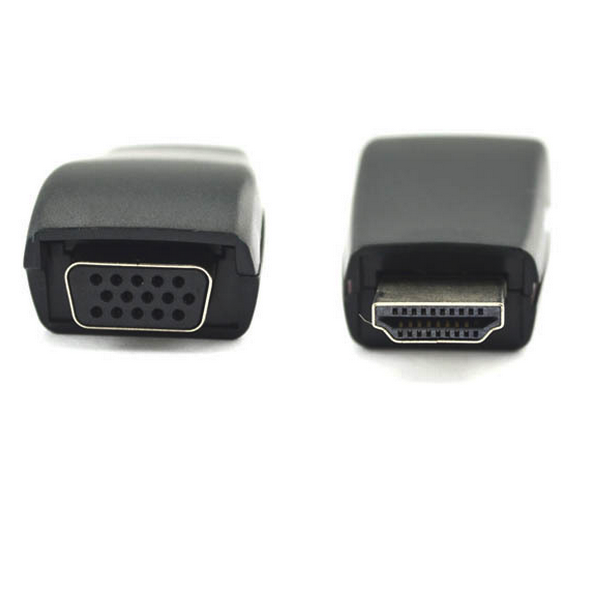

•  HDMI input: Type A HDMI Male connector

•  VGA output: VGA DB15Pin Female signal output

•  Audio output: 3.5mm Audio output

• Power supply: 5V DC Female port

•  Color: Black , White
