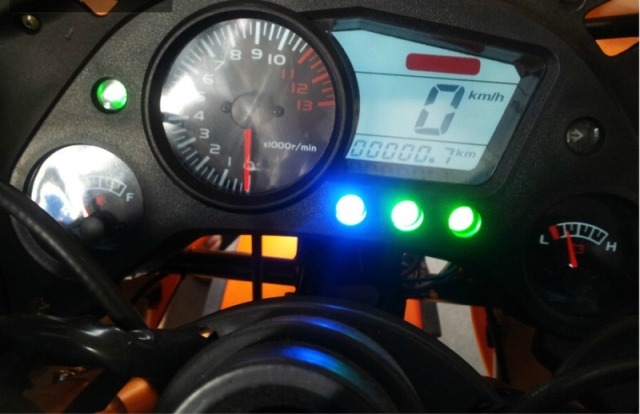

ไมล์ดิจิตอล cbr 150

Functional configuration

♦ LCD, stepper motor, LED backlight;

♦ speedometer: LCD, a top speed of 199km / h, the error +10%;

♦ Tachometer: stepper motor control, maximum speed of 13000rpm, error of +5%;

♦ Odometer: six digits, the minimum 0.1km;

♦ Fuel table: adaptation fuel sensor 10-100 ohms, less oil reminder;

♦ Water temperature gauge: the adaptation temperature sensor, high temperature alarm;

♦ indication function: left turn signal, high beam and right turn signals ·;

 ♦ stalls significant features: N lights file, 1-6;

♦ alarm function: low oil alarm, high water temperature alarm, fault alarm EFI.

The main technical parameters:

1 Operating temperature: -20 - +70 ℃;

Storage temperature: -30 - +80 ° C;

3, working voltage :8-18V;

4, anti-UV, anti-glare;

5, high pressure: the moment a voltage of 100V;

6 Vibration resistance: see Q / item HTR 3-2004 3.10;

7, waterproof, anti-lightning.
