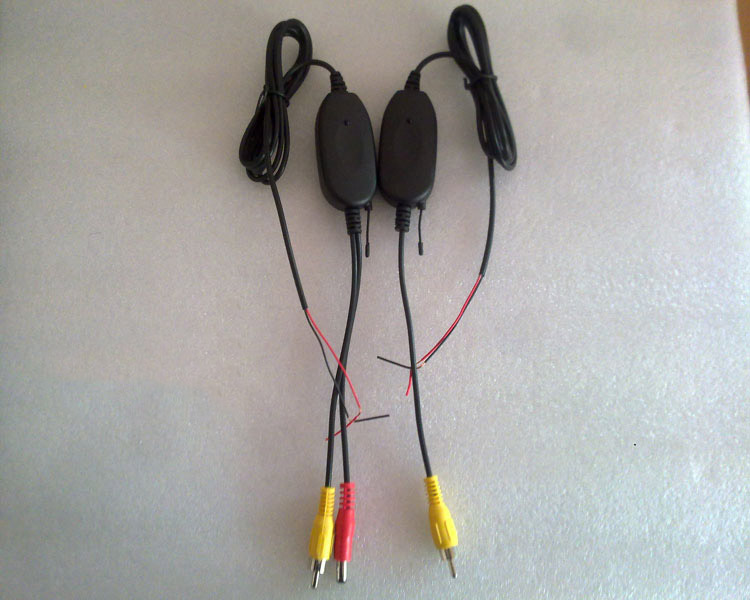

ชุดรับส่งสัญาณวิดีโอไร้สาย สำหรับกล้องถอยหลัง ( wireless video link )

ใช้รับส่งสัญญาณกล้องภายในรถยนต์ ไม่ต้องเดินสาย


Product Description:

Emission frequency 2,400 ~ 2,483 MHz Transmission Power 10mW/CE 2mW/FCC Frequency range 2400 ~ 2483.5MHz

working frequency 2414MHz/2432MHz/2450MHz/2468MHz (optional)

System System PAL / NTSC Frequency Stability ± 100KHz ≤-55dBm LO leakage Receiving Sensitivity ≤-85dBm

SNR 38dB THD 1.5% (100HZ ~ 15KHz) antenna input terminal integrated antenna (external)

channels controlled fixed frequency circuit Jigging Video output level 1Vp-p ± 0.2V @ 75Ω

Power Input DC 12V Power Output DC 5V (MINI USB Interface)

Camera connected to the transmitter, the transmitter from the reversing lights (mounted on the back) or brake (mounted in front) connects to 12V power supply.

receivers directly into the cigarette lighter or 12V power connection
